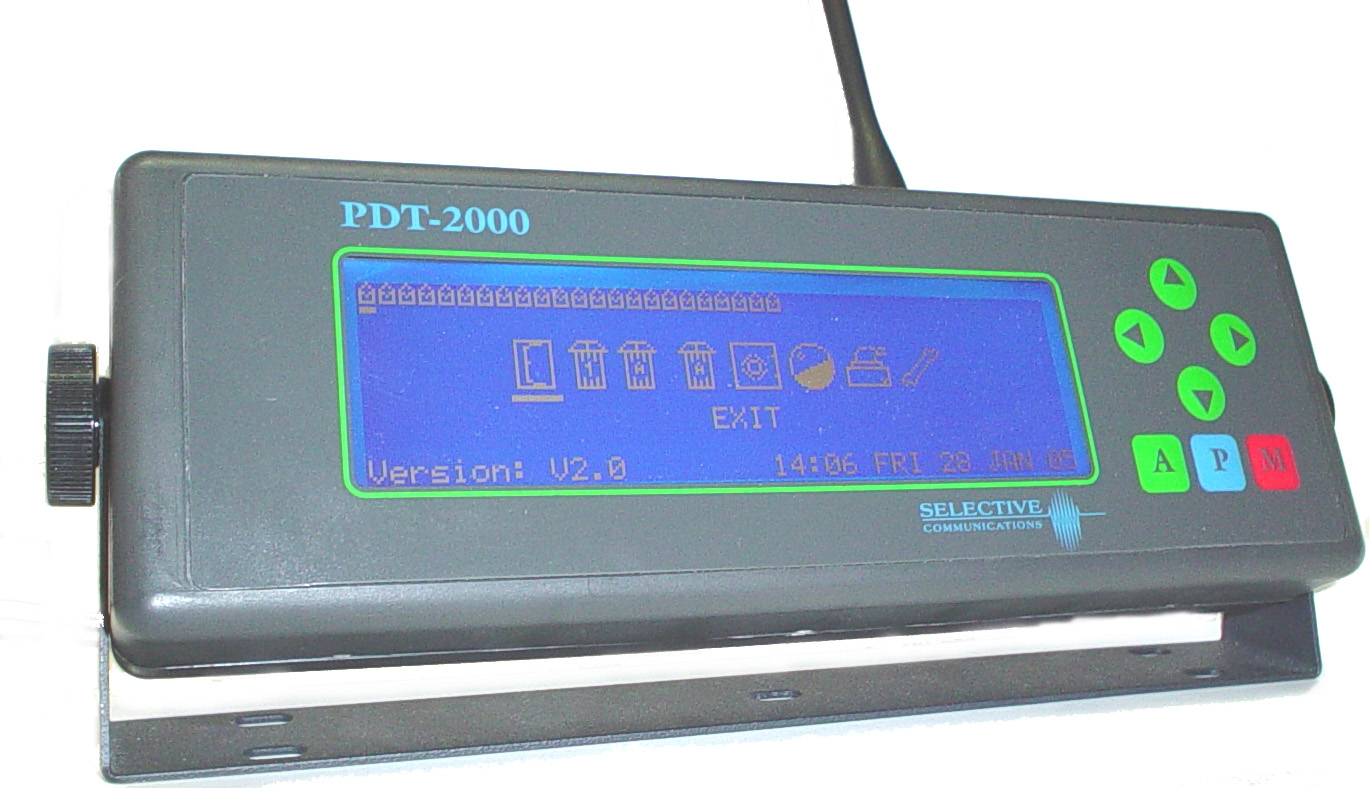

PDT2000 - Paging Data Terminal

The PDT2000 Paging Data Terminal is a multi-function paging device capable of receiving messages and displaying them on a large (130 x 40mm) graphical LCD display. It is also able to print messages direct to a parallel printer or output the message data via 1 or 2 serial ports. The PDT may also be fitted with up to four relay control outputs internally or may interface with the RCM2000 Relay Control Module for multiple relay control.

Other options include an inbuilt pocsag paging encoder for repeater or rebroadcast applications and other specialized serial data inputs and outputs for control of devices such as LED signs.

The PDT2000 is also available in a ruggedized version for harsh environments such as mounting on forklifts for in-plant messaging and dispatch.

This unit is perfect for medial emergency (Code Team) notification, use in the PBX to insure that the information goes out properly, record the message/ date/ timestamp, etc. for verification and risk management.

Features

• Easy to use intuitive user interface
• Large 8 line x 40 character display (zoomable to 4 x 20)
• Display area 130 x 40 mm (Approx 5 x 1.5 in.)
• 40 x message memory
• 10 x locked message memory
• Delete-One and Delete-All functions
• Print message function (1 button)
• Individual Cap Code Printing (Programmable function)
• Programmable data outputs
• Time and date display
• Pocsag encoder output
• Time and date stamping of messages
• LED Backlight brightness adjustment
• Display contrast adjustment
• Receivers available for most paging bands (VHF, UHF, 900MHz)
• Pocsag and Flex versions available
• Power requirements 12 volt DC
• 2000+ CAP codes (pocsag)
• Wall, vehicle or desktop mountable
• Physical 214 x 70 x 45mm (excl. bracket)
• Tilt mounting bracket
• Battery backed real time clock
• User settable display and alerting functions

Outputs

• Parallel printer output (centronix)
• Serial data output (2 ports option)
• Relay outputs (Up to 4 optional)
• Relay Control Module outputs (32 relays per module)
• Pocsag encoder output
• Transmitter control (PTT)
• TNPP encoding and decoding
• Other interfaces on request

APPLICATIONS

• Desktop or Vehicle Pager
• Pager message monitoring
• LED Sign Control
• Relay Control
• Message Printing
• Cross Band Repeater
• Cross Protocol Repeater
• Store & Forward
• Paging Printer
• Paging Logger to PC
• Remote Control of Serial Devices
• For Other Applications Please Call

SOFTWARE INTERFACES

• LogPage - Message Logging Software
• RePage - Message Filtering & Redirection SW
• i-Page - Messaging Software

Picture of a PDT2000 mounted in a command vehicle of the Bureau of Emergency Services & Telecommunications.

PDR2000 Paging Data Receiver The PDR2000 Paging Data Receiver is a multi-function paging data receiver capable of receiving paged messages and processing them in a variety of ways.

In Medical Emergency providers we use it for verification of system integrity by providing a constant 24/7 test-and-alarm of your paging system infrastructure. The PDR watches the encoder, link and transmission network and if it fails to operate within minutes the PDR alarms to notify you of the failure. This allows you to be pro-active and immediately locate the problem and commence resolution instead of simply waiting for users to complain of missed pages.

It is able to print messages direct to a parallel printer or output the message data via the serial ports in a number of different formats and protocols. The PDR2000 may also be fitted with up to four relay control outputs internally or may interface with the RCM2000 Relay Control Module for multiple relay control.

Other options include an inbuilt pocsag paging encoder for repeater or rebroadcast applications and other specialized serial data inputs and outputs for control of devices such as LED signs. The PDR also has an inbuilt search and replace text facility for manipulating the incoming messages.

We have developed a wide range of applications that use the considerable functionality of the PDR2000 so if your requirement does not appear on this page please contact us to discuss your requirements.

Applications include:

• Message Monitoring & Printing
• Broadcast Services
• Paging Infill and Rebroadcast
• Data Transfer
• LED Sign Control
• Remote switching
• NurseCall
• Plant Monitoring/Control

Features

• Text search and replace
• Relay control by message or individually by capcode
• Output to Relay Control Modules (32 relays ea.)
• Custom software design for message data manipulation and control available on request
• TNPP encoding and decoding
• Inbuilt pocsag encoder
• Time and date stamping of messages
• Receivers available for most paging bands (VHF, UHF, 900MHz)
• Pocsag and Flex™ versions available
• Parallel printer output (centronix)
• Serial data port (2 optional)
• Relay outputs switching 12V 1A (1-4 relays optional)
• External antenna on BNC connector
• Power requirements 12 volt DC
• Very large number of cap codes (>2000)
• Physical (provisional) 220 x 70 x 30mm
• Battery backed real time clock

Capabilities

• Pager message monitoring
• LED Sign Control
• Relay Control
• Message Printing
• Cross Band Repeater
• Cross Protocol Repeater
• Store & Forward
• Paging Printer

Software Interfaces Available

• Paging Logger to PC
• Remote Control of Serial Devices
• For Other Applications Please Call
